This mini street sweeper is with multi-functions and the mini road sweeper SW-III is designed to clean places where large street sweepers cannot be used.
SW-lll is a mini road sweeper. This mini street sweeper is designed to clean city centers, cycle tracks, pedestrian areas, arcades, car parks and all those places where large street sweepers cannot be used. Besides, this compact street sweeper includes many solutions designed to ensure ease use and maintenance without any specific tools and training.
ADJUSTABLE STEERING WHEEL WITH POWER STEERING
Steering wheel is adjustable with power steering system, which can help to reduce vehicle fuel consumption, with good positioning performance and is easy for maintenance.
PERFECT VISIBILITY
High-quality large glass doors and windows with high light transmittance ensure good lighting and visibility in the cab.
SPRUNG SEAT
Adjustable, improves seat comfort and has good safety performance.
FRONT BRUSHES
The front arms are equipped with an anti-shock system. The arm will release itself automatically to avoid damages in case of accidental knocks.
SWINGING SIDE BRUSHES
To convey all the litter towards the suction vent and avoiding cleaning marks left by only having front brushes and no side brushes.

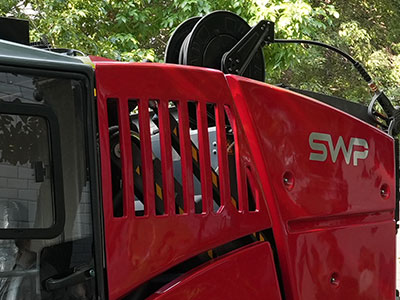

AIR AND OIL COOLER PROTECTED AGAINST DUST
The water radiator and oil radiator are protected against dust, which greatly reduces the maintenance rate.
OPENING FOR BULKY WASTE
The litter flap allows to load large litter or heaps of leaves. The lifting height of the dustbin can reach 1450mm. And it can dump at any height.

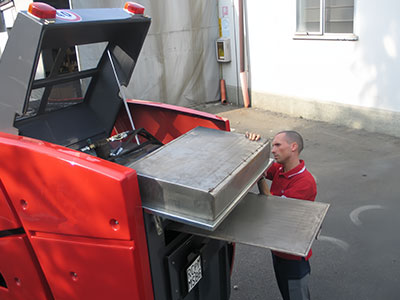

Pre filter and inox filter
The two stainless steel filters can be cleaned easily and quickly without tools even during the normal working.

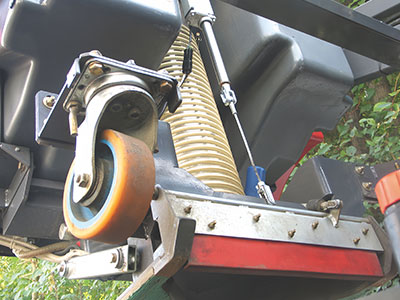

DIRECT SUCTION VENT
Increases the suction power. It can be lifted up to 1.45mfor dumping and to clear suction hose from eventual debris.

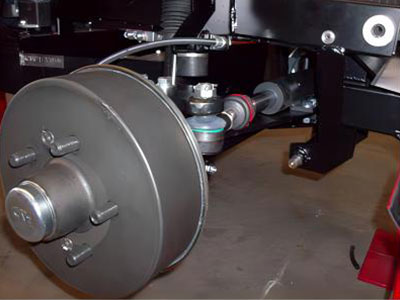

REAR DRIVE WHEELS
All operations are driven by hydraulic power. 2 motors on the rear wheels and 4 pistons hydraulic each motor provide high power. So It’s easy to climb gradient.
SW-III MINI STREET SWEEPER
Features
Joint R&D with famous ltalian cleaning company RCM (Raimondi Costruzioni Meccaniche);
Compact street sweeper SW-III is with rear wheel drive, four-wheel hydraulic brakes and full hydraulic transmission;
Small street sweeper SW-III is with compact design which is perfectly for city centers, pedestrian areas, cycle tracks, and various tricky places;
Small road sweeper is acceptable for normal road bins discharging, no extra stop required during work;
规格数据表
操作手册
零件清单和图标
SW-III COMPACT STREET SWEEPER
Main Technical Parameters
Option 1 with Isuzu Engine
Unit
SW-III
Hourly Performance
m²/h
17000
Maximum Cleaning Width(With 2 Side Brushes)
mm
1700
Maximum Cleaning Width(With 3 Side Brushes)
mm
2000
Maximum Cleaning Width(With 4 Side Brushes)
mm
2300
Hopper Capacity
lt
730
Hopper Emptying
m
1.45
Water Tank
lt
220
Engine-Power
Isuzu Diesel
No.Of Cylinders
4
Cooling
Water
Installed Power
HP/KW
62/46
Maximum Speed
Km/h
24
Traction
Rear wheel hydraulic drive
Dimensions
mm
2975*1300*1995
Net Weight
Kg
1870
Option 2 with Kubota Engine
Unit
SW-III
Hourly Performance
m²/h
17000
Maximum Cleaning Width(With 2 Side Brushes)
mm
1700
Maximum Cleaning Width(With 3 Side Brushes)
mm
2000
Maximum Cleaning Width(With 4 Side Brushes)
mm
2300
Hopper Capacity
lt
730
Hopper Emptying
m
1.45
Water Tank
lt
220
Engine-Power
Kubota Diesel
No.Of Cylinders
4
Cooling
Water
Installed Power
HP/KW
35/26
Maximum Speed
Km/h
24
Traction
Rear wheel hydraulic drive
Dimensions
mm
2975*1300*1995
Net Weight
Kg
1870
SW-III SMALL ROAD SWEEPER
Optional Design & Setting

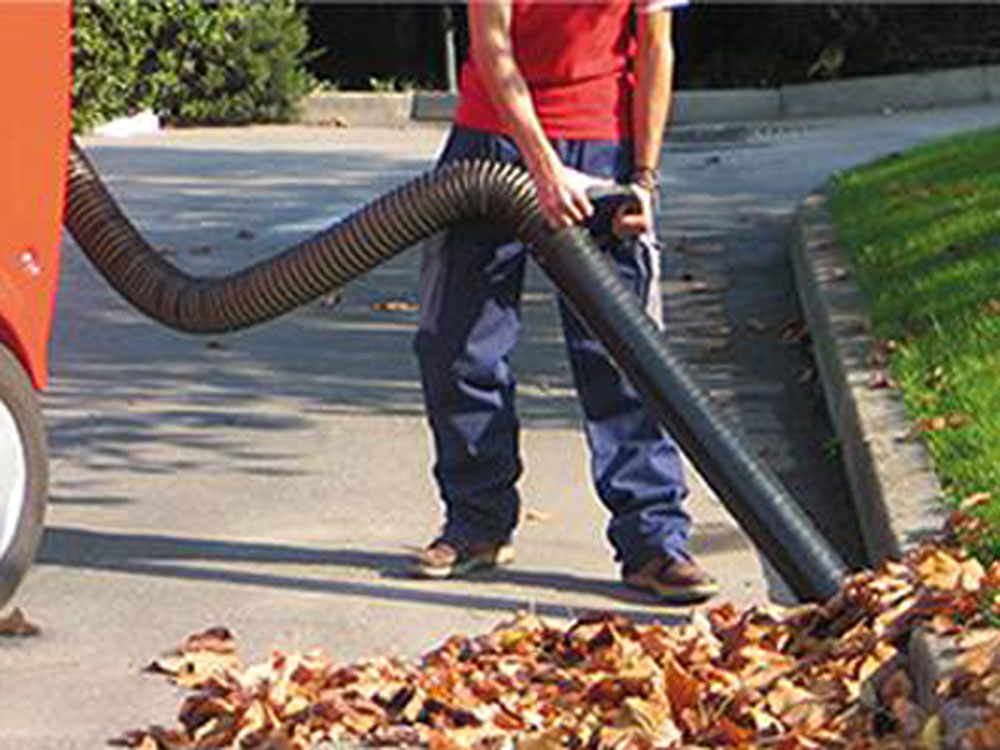

Vacuum Hose
Vacuum Hose
Vacuum straws can better assist cleaning workers. It can be used to vacuum dust, piles of leaves, garbage in the green belt, and so on.
High Pressure Washing
High Pressure Washing
It's with automatic pipe rewind, which can be used for watering and help to clean stubborn stains, such as floor garbage, wall advertisements...

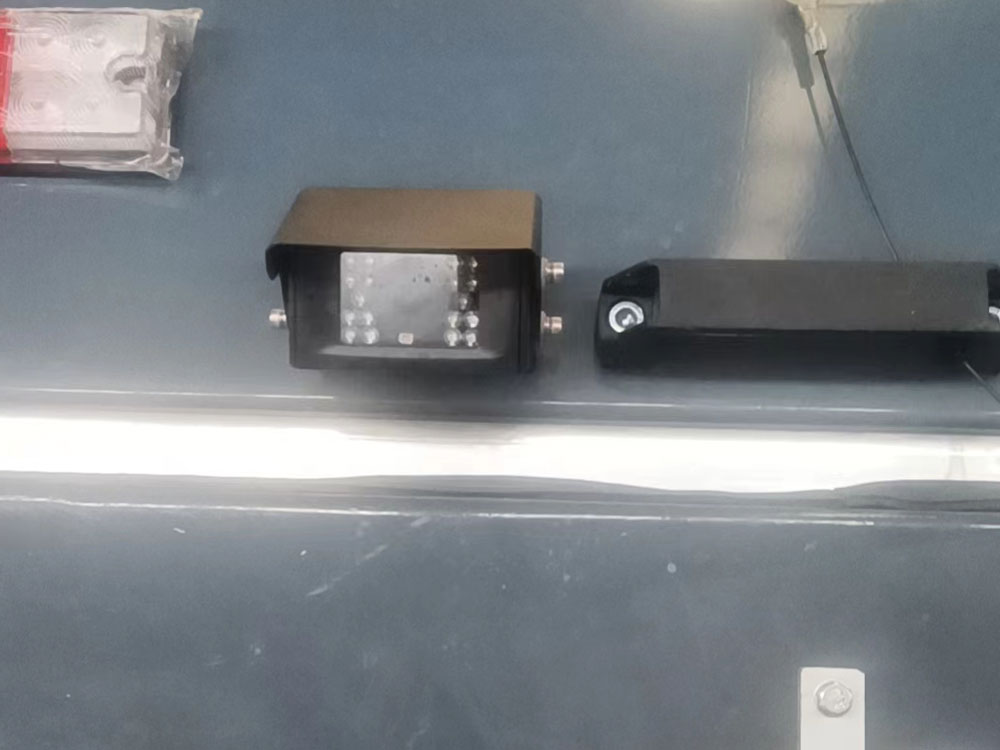

Suction Vent Camera
Suction Vent Camera
It can observe the rear road condition when reversing and dumping garbage, which better ensures safety.
Fog Cannon
Fog Cannon
It has the function of working spray, which can effectively reduce the dust when the machine is working.

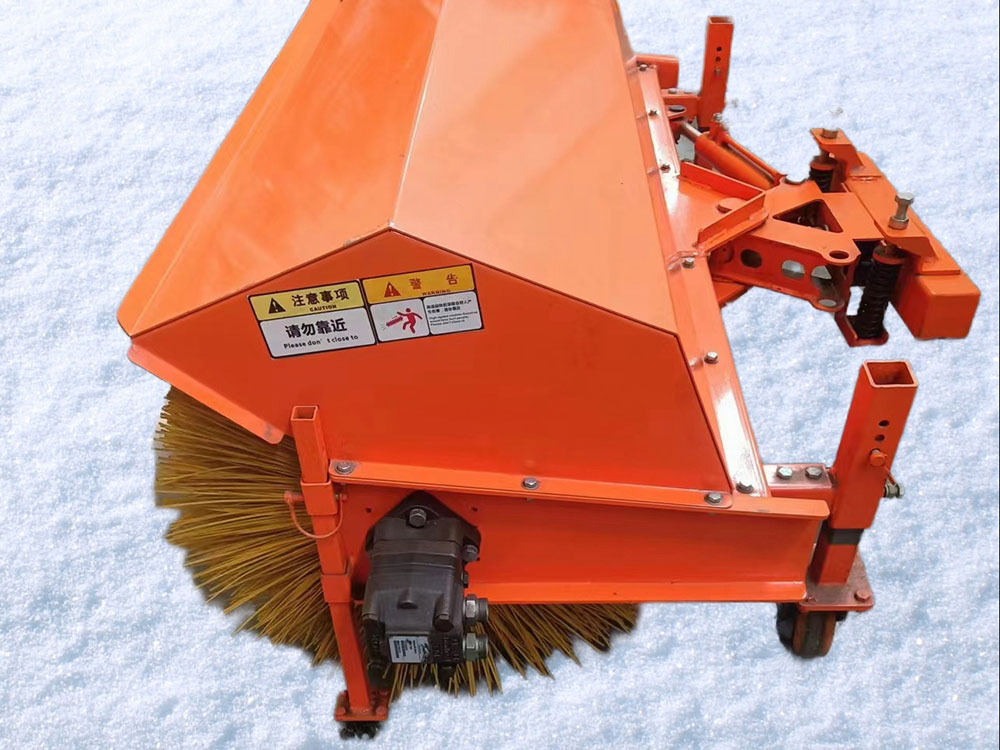

Snow Roller
Snow Roller
It can be used for snow clearing operations on various roads and can be used to clear lightly compacted snow.

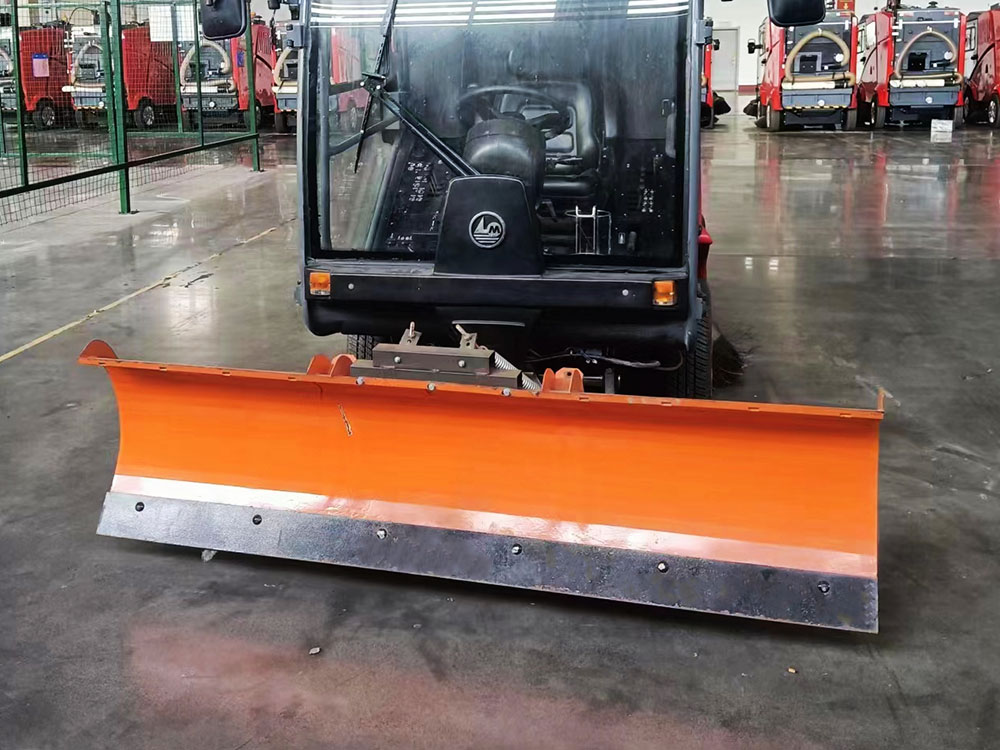

Snow Shovel
Snow Shovel
It can be used for snow clearing operations on various roads and can be used to clear lightly compacted snow.
SW-III SMALL STREET SWEEPER
Advantage
Direct Suction Vent
Increases the suction power. The compact street sweeper can be lifted up to 1.45m for dumping and to clear suction hose from eventual debris.
Automatic Lifting
Suction vent lifts up automatically in reverse to avoid the compact road sweeper from any damage hitting fixed objects (curbs, gutters,etc.)
Pre Filter And Inox Filter
The mini road sweeper is with two stainless steel dust filters which can be cleaned easily and quickly without tools.
Easy Maintenance
With only one spanner it is possible to reach all the mechanical components and make inspection and maintenance easy and quick.
Easy Maintenance
With only one spanner, it is possible to reach all the mechanical components of this mini street sweeper so that people can make inspection and maintenance easy and quick for the small street sweeper.
Front Brush Protection
Front brushes of the small road sweeper have an anti-shock system to avoid damages in case of accidental knocks

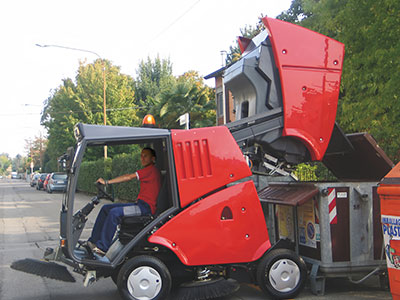

Emptying
The compact street sweeper can discharge into a normal road bins to work for longer without stopping.
Easy Maintenance
With only one spanner it is possible to reach all the mechanical components and make inspection and maintenance easy and quick.
SW-III COMPACT STREET SWEEPER
Application Scenario
Cycle Tracks
Pedestrian Areas
Recreational Parks
City Centers
Parking Lot
Factory Plant
SW-III COMPACT STREET SWEEPER
FAQ
FAQs
Why compact street sweeper SW-III has 2 brushes in the middle?
In deed, it often happens that the (only) front brushes sweepers are not able to convey all the dirty towards the vent. The result is a “gap“ between the side lines of the vent and the lines of the front brushes and there will be light between the two lines. The 2 middle brushes of compact road sweeper SW-III can help to convey all the litter towards the suction vent.
Can we choose front brushes of mini road sweeper SW-III to be single or double?
Yes. The front brush quantity of mini street sweeper SW-III is optional. Either 1 front brush or 2 front brushes of mini road sweeper SW-III is OK. You can choose as per your own requirements.
Is daily maintenance of small street sweeper SW-III convenient？
Yes. Just one spanner is enough to open the bonnets of small road sweeper SW-III and check all the mechanical components of compact street sweeper SW-III. You can reach all the parts of the compact road sweeper SW-III without interferences for easy maintenance.
Does mini street sweeper SW-III have the air-conditioning?
The air-conditioning of mini road sweeper SW-III is optional. If the air-conditioning is required, we can help to install on the small road sweeper SW-III.
